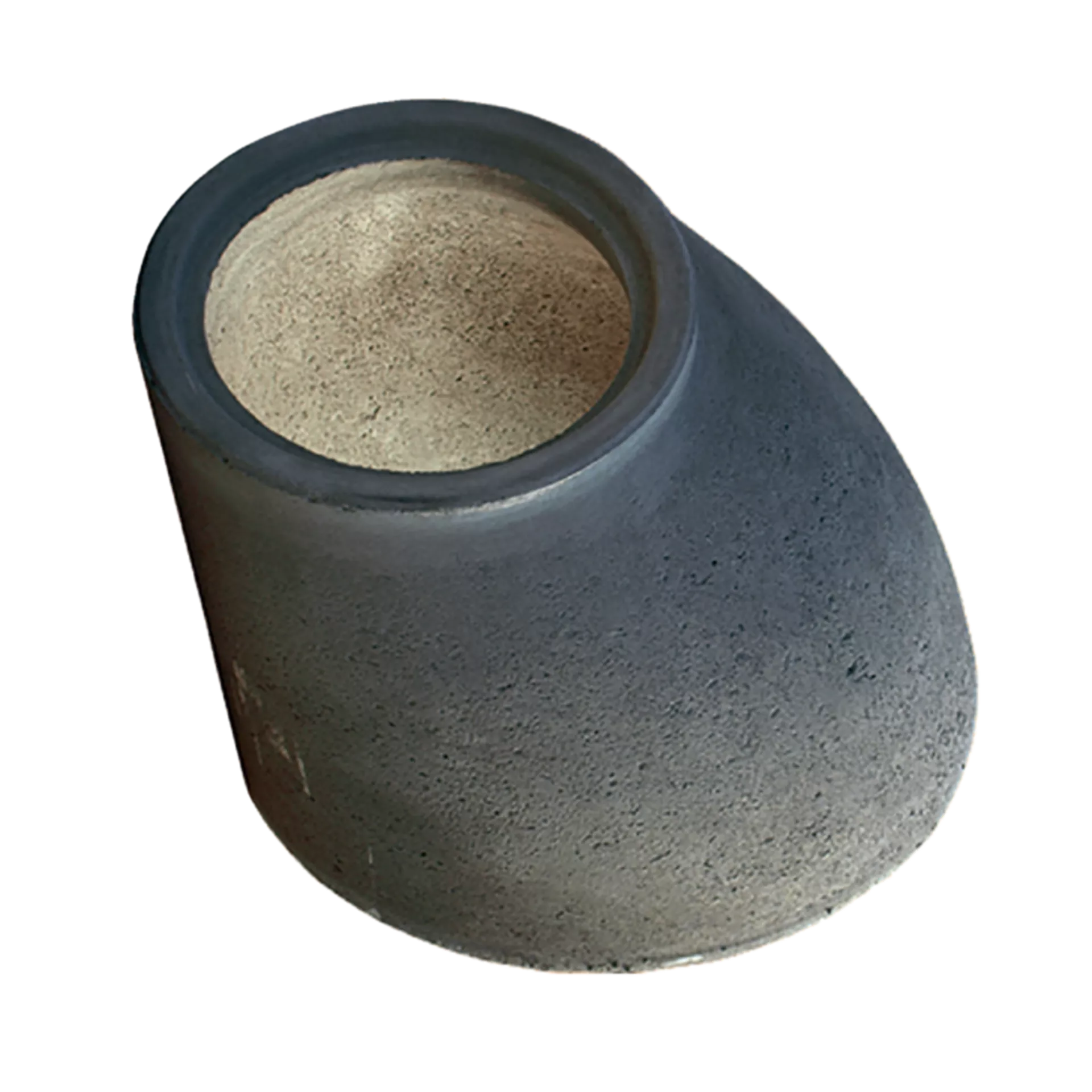

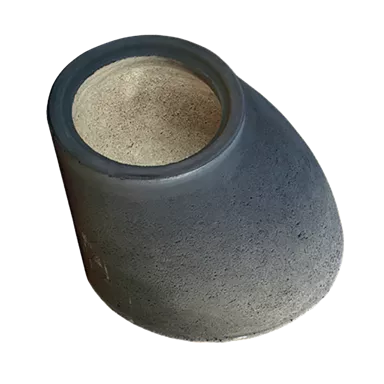

Cône ovale WN/LN 90/110 cm H 50 cm
A4003 Art. 122628
Groupe
AD
Diamètre intérieur D
600
Hauteur H (mm)
500
LN (mm)
1100
Épaisseur de la paroi W
90
Dimension nominale largeur pour section carrée et ovale WN
900
Armature
non armé
Type
1
Usine de production
11
Swissness
Swissness
type1, asym, trou d'homme côté étroit
Téléchargements CAO et BIM
